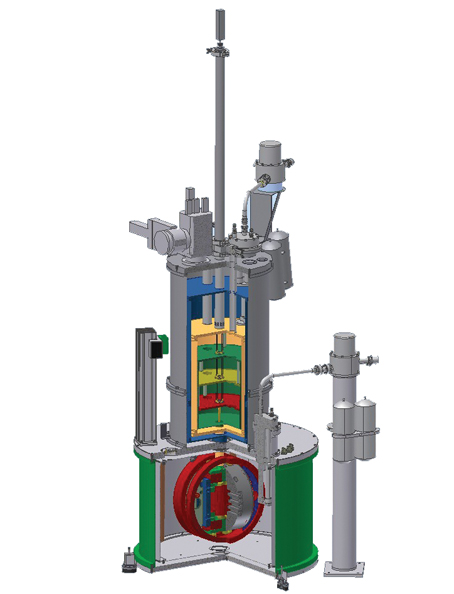

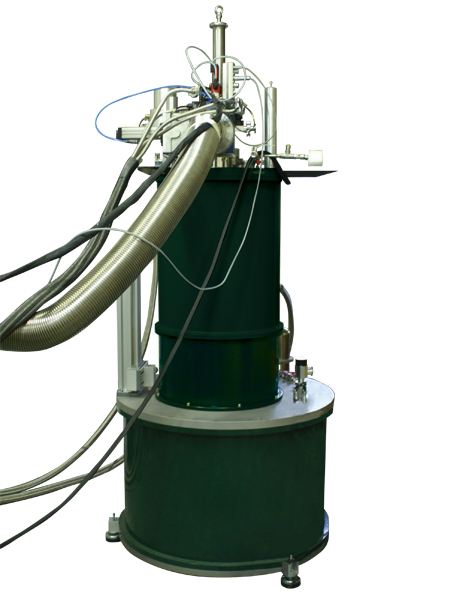

Cryogen Free DR and High Field Magnet in Shared Vacuum Space

Click image to enlarge
Click image to enlarge

Typical specification

  • 50 mm 4 K magnet bore, 30 mm sample space in DR
  • Suitable for use with Leiden DR type CF200, CF450, CF650 or CF1000 DR















Key Features

  • Dilution Refrigerator (DR) and high field magnet in shared cryostat
  • Separate pulse-tube coolers for magnet and DR
  • Top loading Leiden DR for temperatures down to 10mK
  • Large 3D cryogen free vector magnet (9 T / 5 T / 1 T)
  • 4 Tesla rotating magnet
  • Use with top-loading probe for easy sample change
